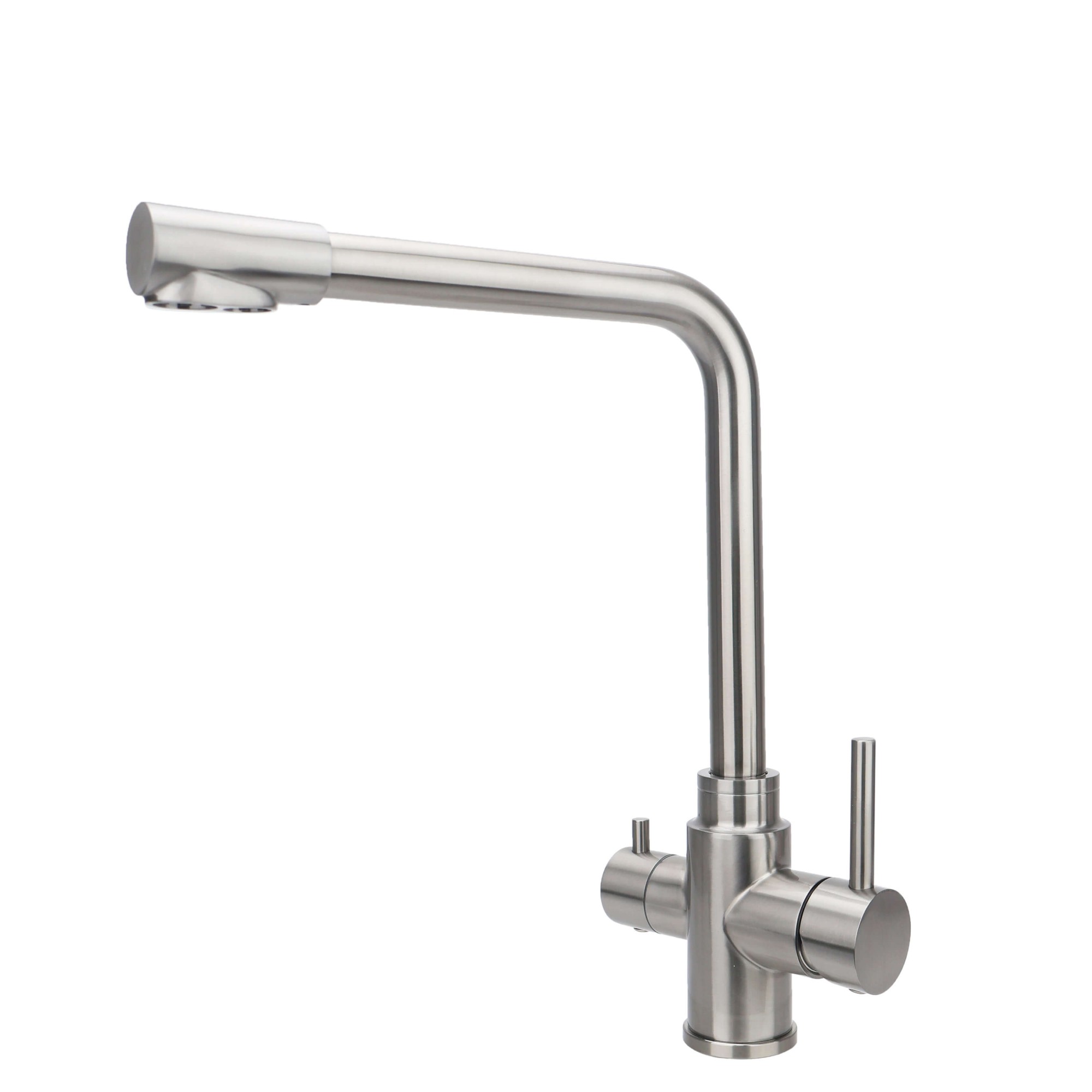

304 Stainless Steel 3 Way Faucet

  • Product Item : DG-S3301-SS
  • Category:Stainless Steel 3 Way Faucet
  • Material: Lead Free 304 Stainless Steel
  • Surface treatment: UV Satin Brushed Color
  • Valve: Ceramic Valve
  • Function: 3 Way Kitchen Faucet
  • INQUIRY   EMAIL

Feature:

1.  Modern and classic design in satin brush finished

2. 3 Way Kitchen faucet dispenser Tap water (cold /hot water) and filtered water in individual channel, avoid filtered water polluted by unfiltered water

3.  High quality Lead free Sus304 Stainless Steel material

4. Ceramic valve cartridge, passed 500000 cycling life test

5.  360 ° Swivel Spout, convenient for kitchen wash purpose

6.  Every Faucet pass high and low pressure water testing before packing, insure all faucet qualified, no fauly defective

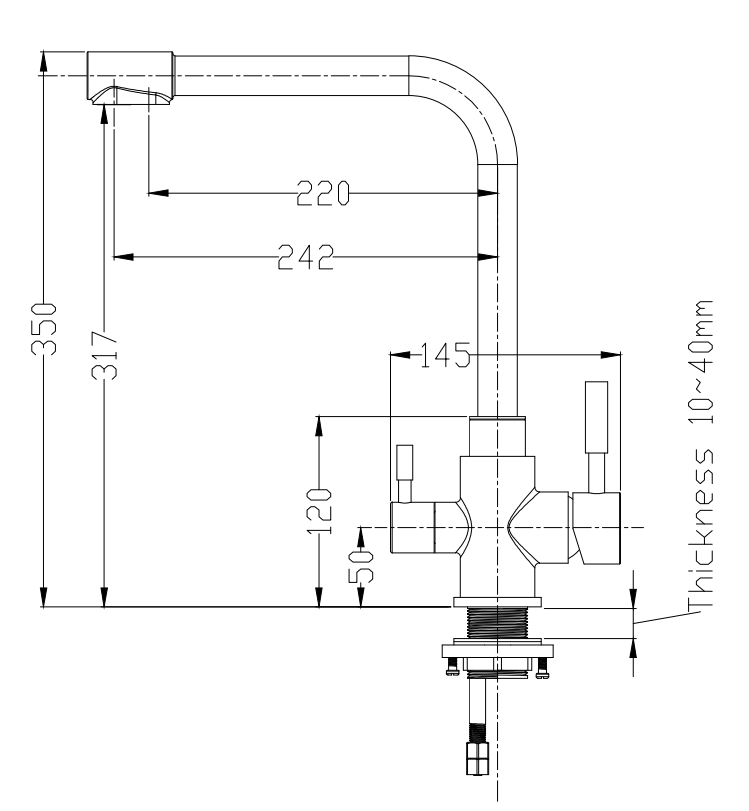

Specification


  • Height: 350mm ( 13.77" )
  • Width: 145mm (5.70")
  • Installation hole:  35mm






How does DOGO 304 stainless steel 3 way faucet working

Comparing to normal faucets, the 304 stainless steel 3 Way Filter Water Taps is equipped with two separate internal channel, the main chanel is still used as usual for mixer faucet water which is kept the desired temperature via a ceramic mixer valve in the faucet, there is warm and cold water connection, in the second channel, on the other handle, the filter water flow, this is connected directly to OS and therefore the two channel's water do not contact for each other, the three way faucet with two separate levers for pured water and mixer water.

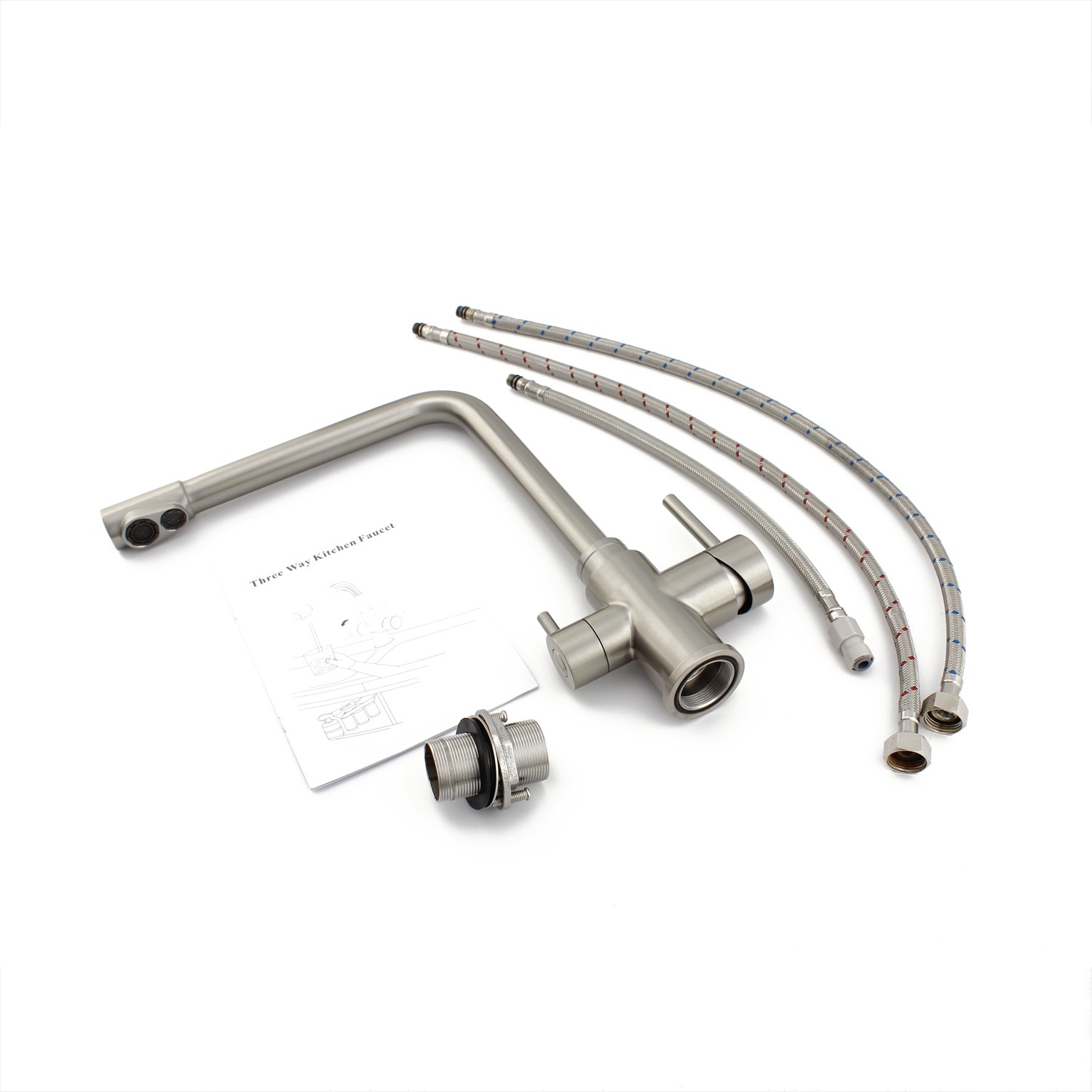

Three way faucets is connected via two flexible hose and pured water hose or quickly adapter.the two flexible hoses (normally blue and red marked) conected to hot and cold water, the pured water hose or quickly adapter is connected to the osmosis system. The faucet can replace your older faucet by its hole, it is easy to replace and conviently for working.




The DOGO modern 3 way faucet, high curved and classic design, in connection with osmosis water system , is a perfect solution for your kictchen water, the faucet is made from chrome-plated brass and is anti -rust and pollution free. the water was controlled by two lever when flow through faucet, the small lever is used for filter water  which connected to OS water system by purified water hose. with which you can tap on or off freshly fitered osmosis water from RO water system at any time.

And the other lever is used for cold and hot water mixer valve which can be closed and mixed directly. a high-quality joint bearing  ensures optimal resistandce and targetd handling.


Due to the separeted lines design, it is also possible to obtain both type water at the same time. it is an elegant and practical addition to any osmosis system, especially for larger households and open-plan kicthens.
